Inspection report
- Report no.
- AS-261021-0093
- Inspection date
- 21 Oct 2026
- VIN / chassis
- SAMPLE1002000000
- Odometer
- 81,940 km
- Package
- Used Plus
- Inspector
- Autospecter Inspector
Inspection summary
- VIN / chassis
- SAMPLE1002000000
- Odometer
- 81,940 km
- Package
- Used Plus
- Customer / seller
- Sample Customer
- Engine type
- Petrol
- Transmission
- Automatic (CVT)
- Engine capacity / motor power
- 1597 cc
- Engine / motor number
- SMPE1002
- Colour
- Silver
- Year of registration
- 2018
- Vehicle type
- M1
- OBD port
- Yes
Star rating
Body or chassis repair found: body, wheels and underbody are scored on the repair scale.
Verdict
Findings worth a lower price, or a repair before handover.
Executive summary
SAMPLE REPORT. Sound body with one repaired panel: the right front fender was repainted around a small dent. Front tyres are due soon. No flood or structural signs. Negotiate on the fender and the tyres.
Findings by severity
Condition
Major parts to watch
Nothing serious found on the engine, gearbox, structure or flood checks.

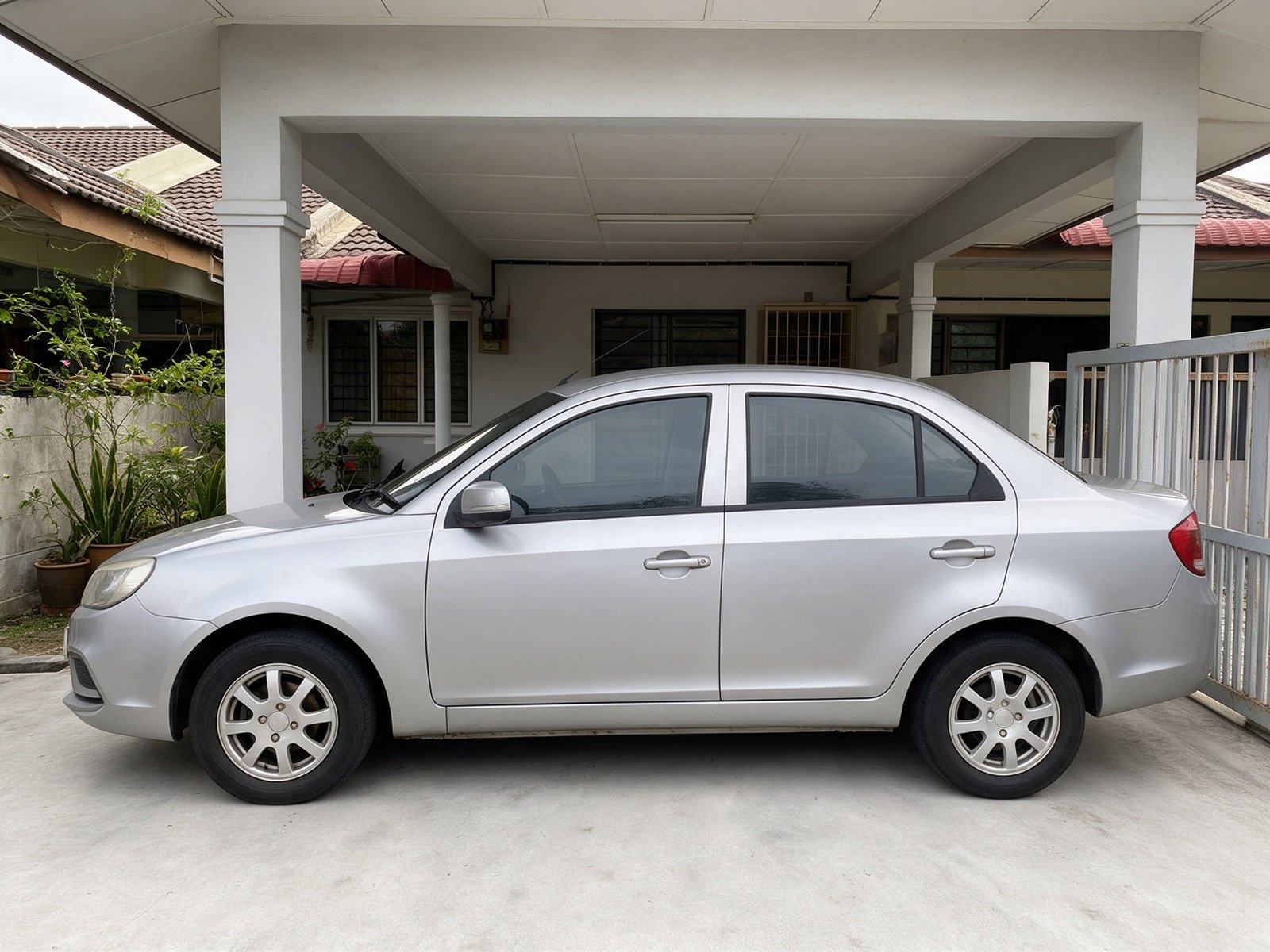

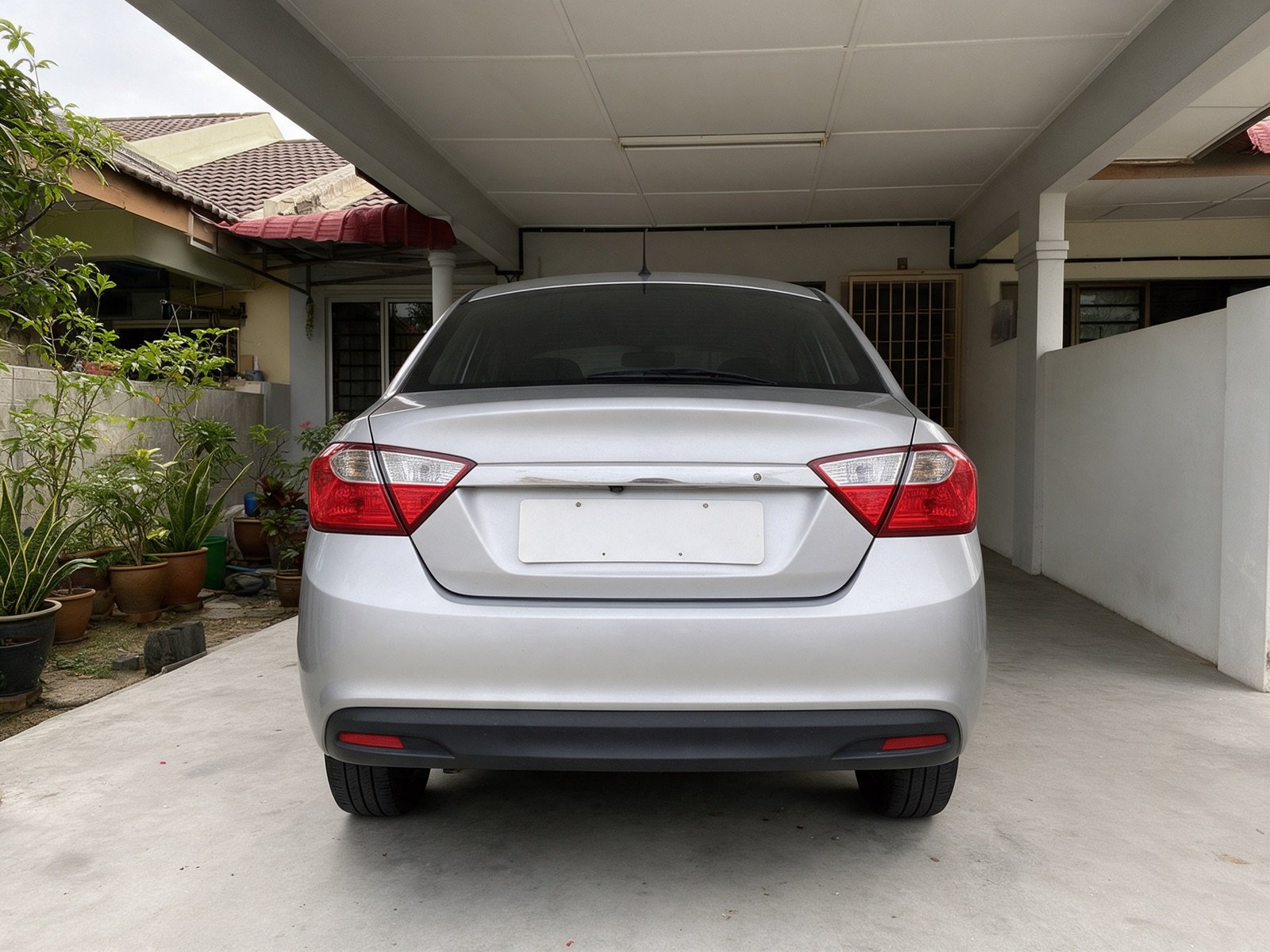

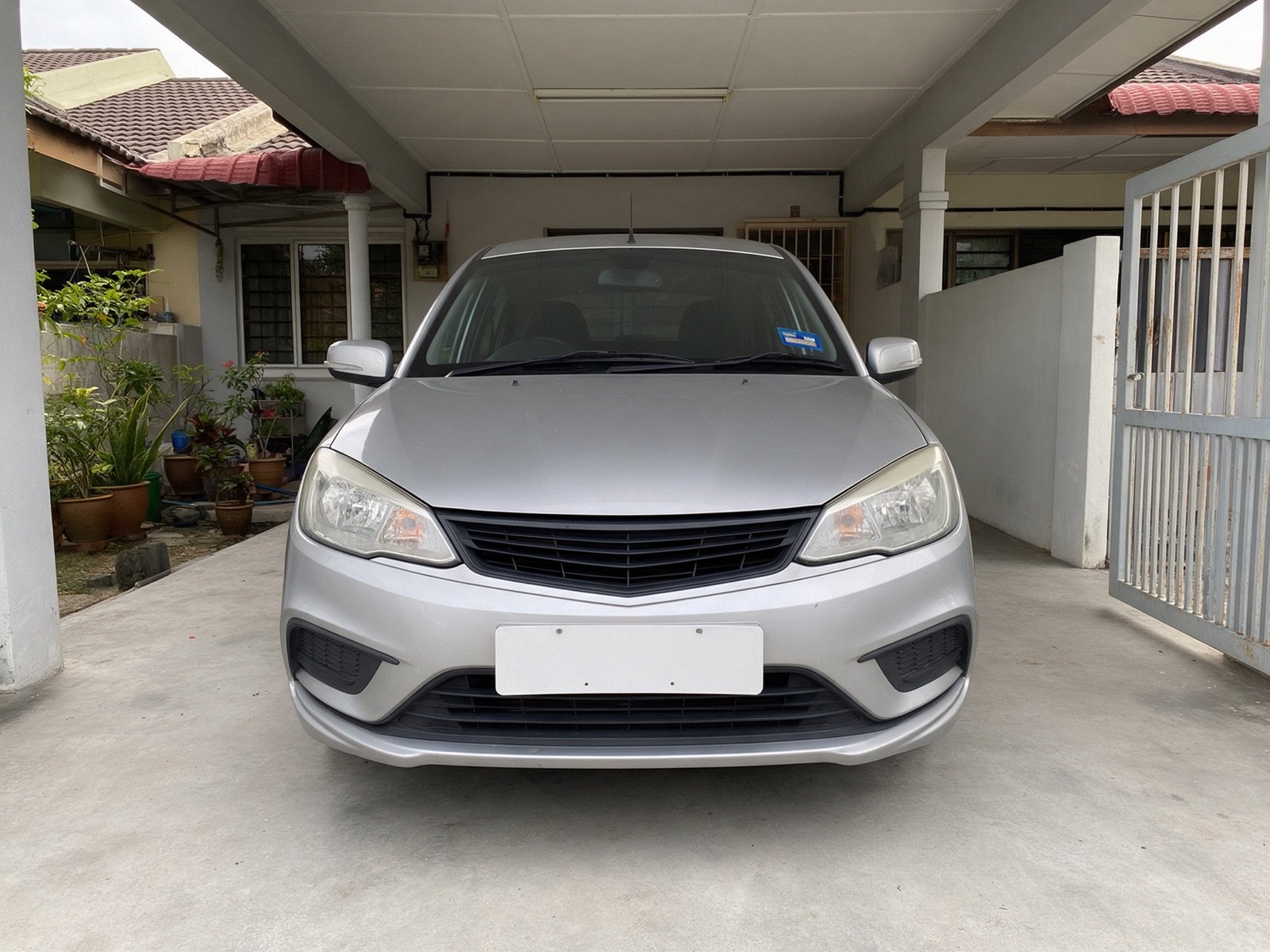

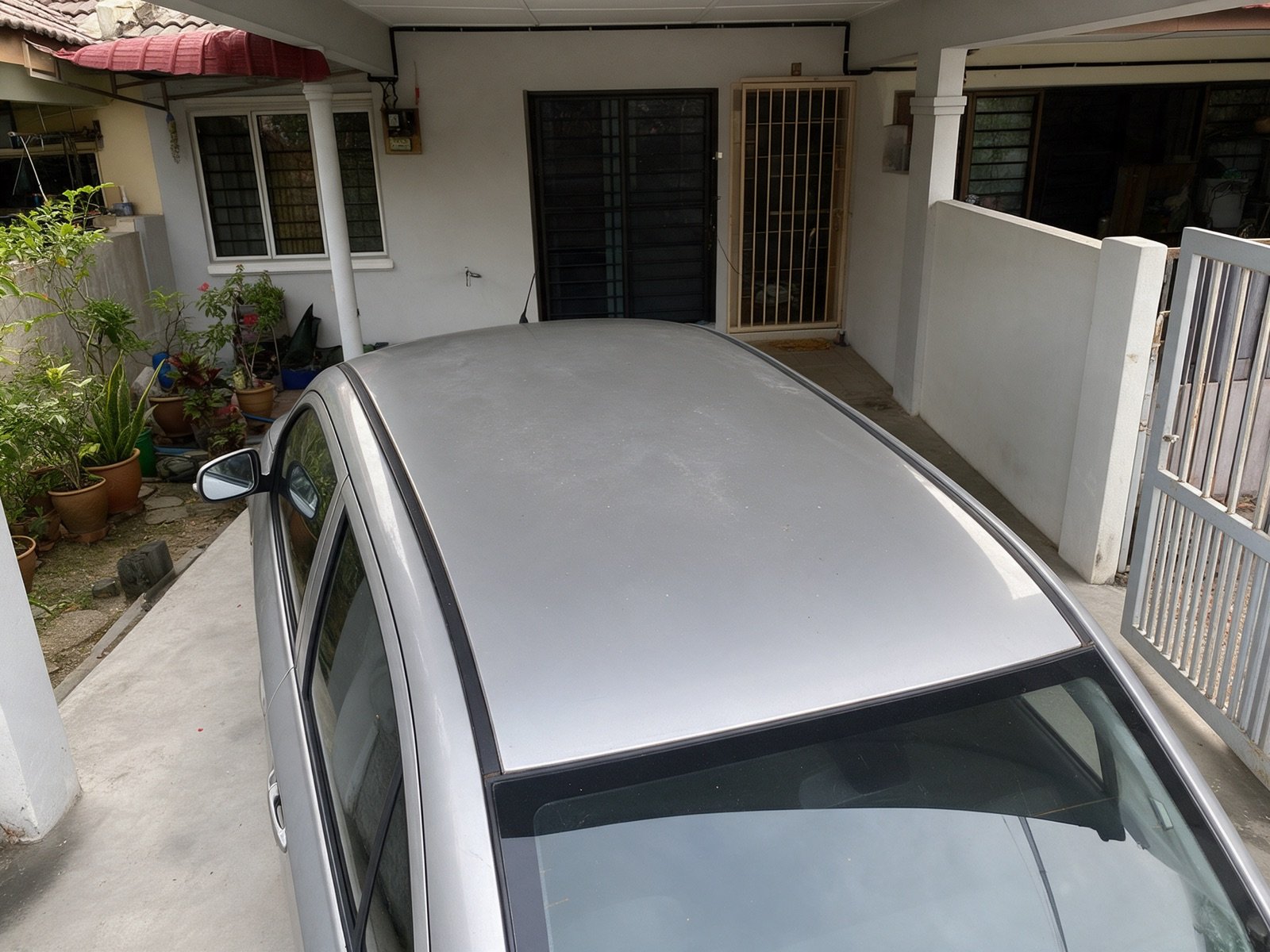

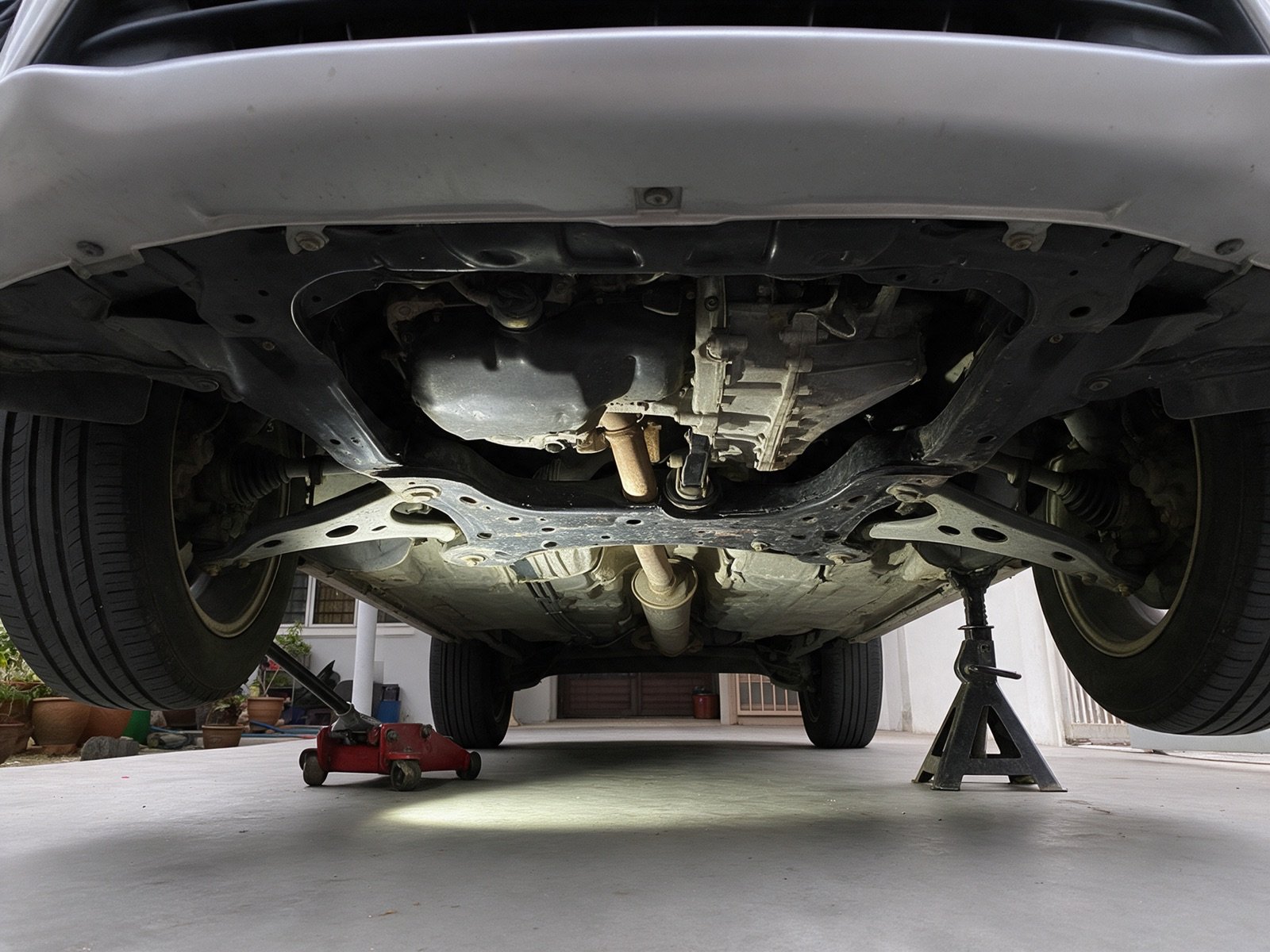

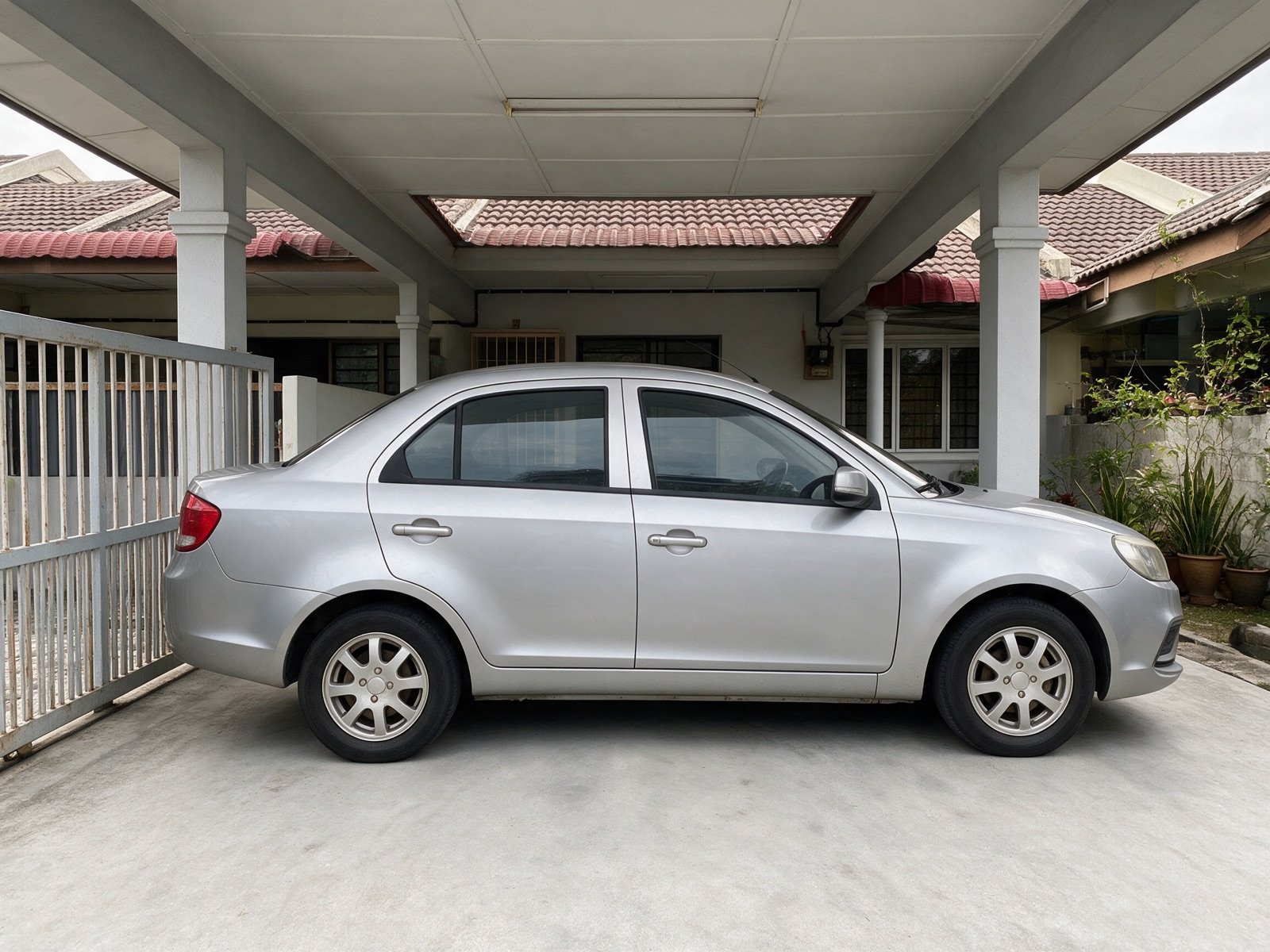

Vehicle photographs
Defect location overview
Outside
- 1. Body panels – Right front fender: shallow dent, about 4 cm, above the wheel arch. Paint intact around it.
- 2. Panel repair or modification – Right front fender repainted after the dent: 248 µm against 110–135 µm on the rest of the car. A proper repair, but a repair, so the car is scored on the repair scale.
- 3. Windscreen, windows and quarter glass – Windscreen: stone chip about 3 mm on the passenger side, outside the driver's view.
- 4. Tyre tread depth – Front-right tyre at 2.6 mm. Budget for a pair of front tyres within a few months.
Cabin
Not marked on the car
Body panels
- Location view
- Outside
- Checkpoint
- Exterior

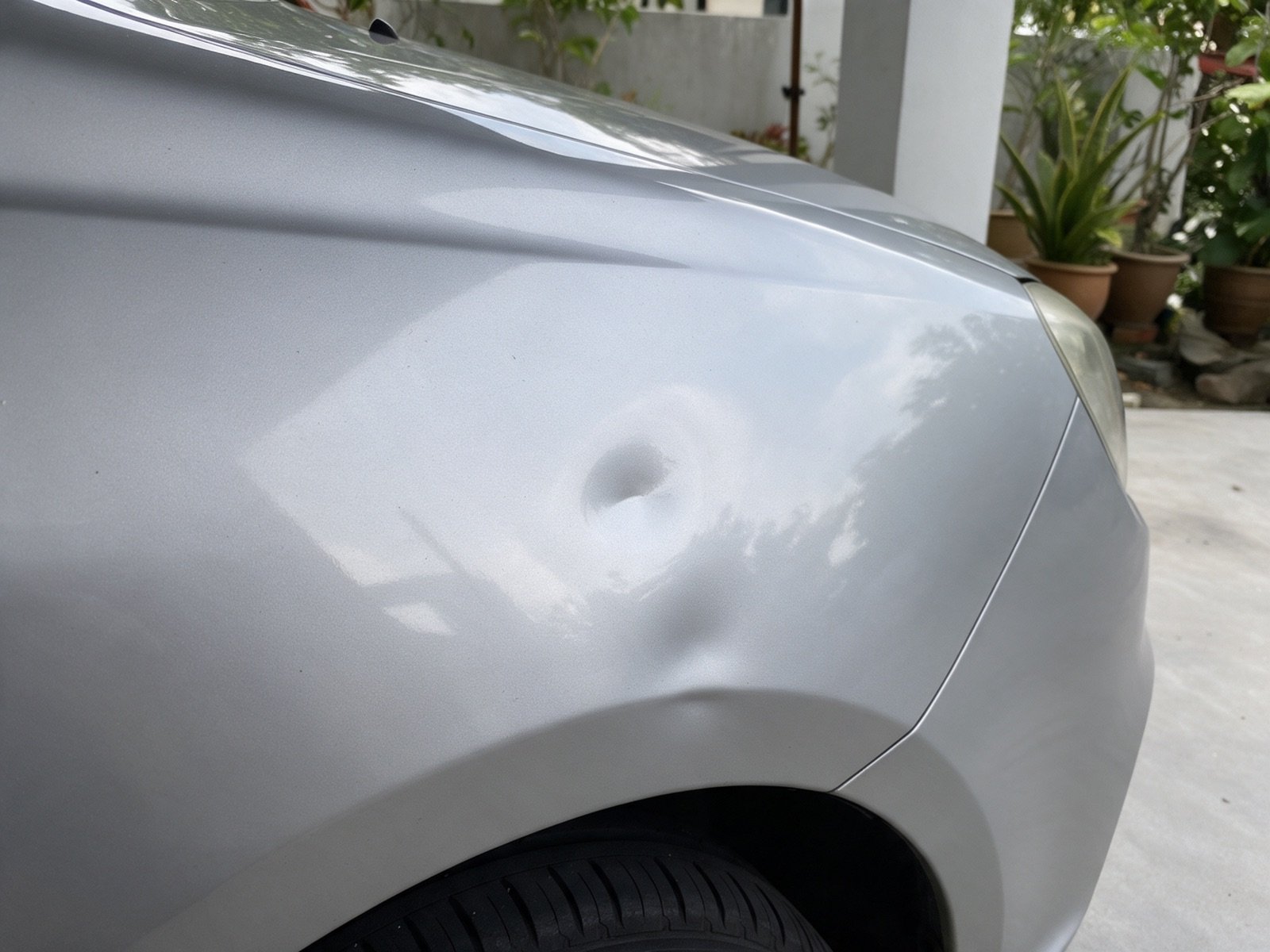

Right front fender: shallow dent, about 4 cm, above the wheel arch. Paint intact around it.
Photographic evidence 1 PHOTO
Panel repair or modification
- Location view
- Outside
- Checkpoint
- Exterior
Right front fender repainted after the dent: 248 µm against 110–135 µm on the rest of the car. A proper repair, but a repair, so the car is scored on the repair scale.
Photographic evidence 1 PHOTO
Windscreen, windows and quarter glass
- Location view
- Outside
- Checkpoint
- Exterior

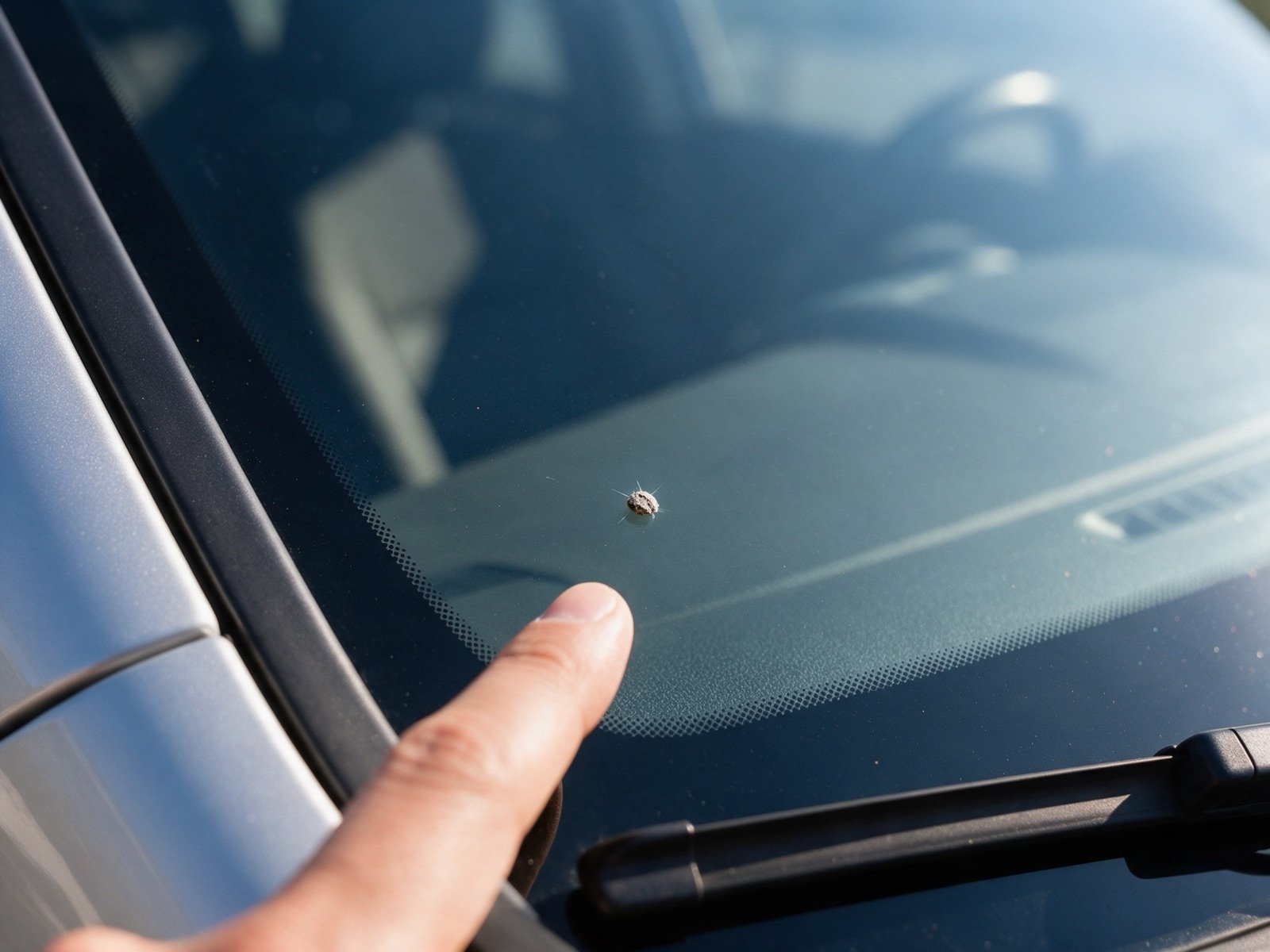

Windscreen: stone chip about 3 mm on the passenger side, outside the driver's view.
Photographic evidence 1 PHOTO
Tyre tread depth
- Location view
- Outside
- Checkpoint
- Wheels and tyres
Front-right tyre at 2.6 mm. Budget for a pair of front tyres within a few months.
Seats and upholstery
- Location view
- Cabin
- Checkpoint
- Interior

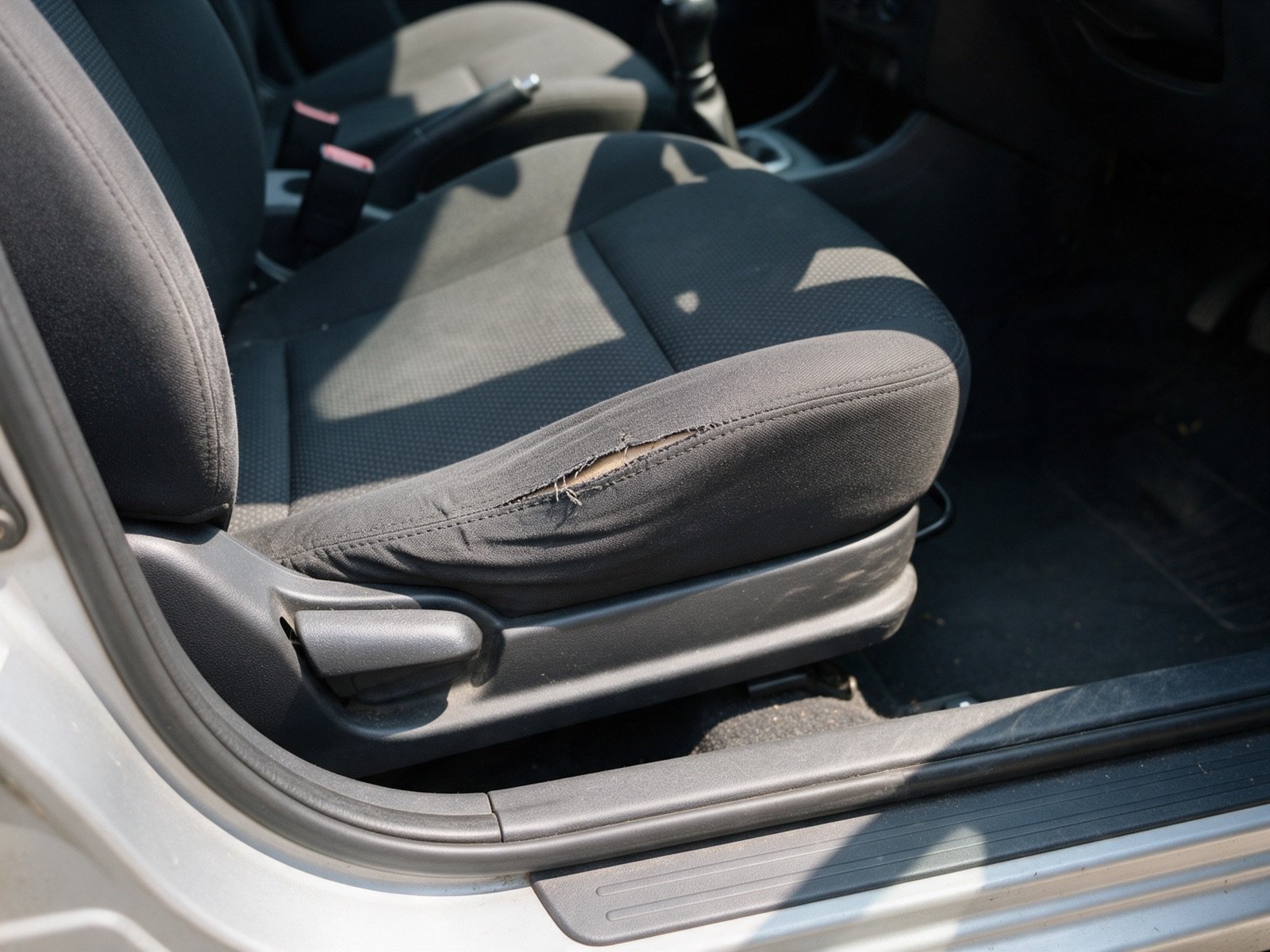

Driver seat outer bolster worn through the stitching. Normal for the mileage.
Photographic evidence 1 PHOTO
Paint depth
- Location view
- —
- Checkpoint
- Advanced audit

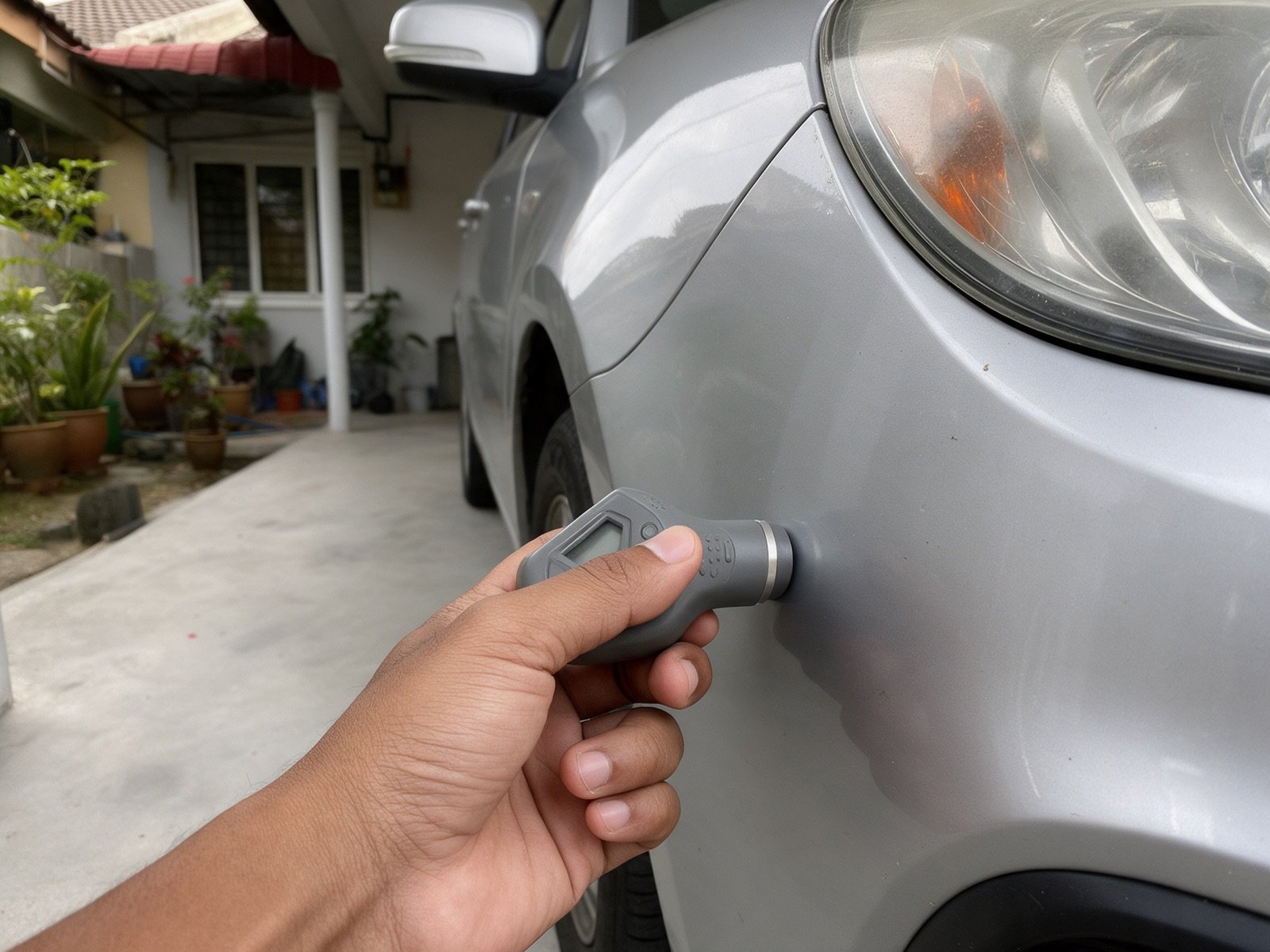

Right front fender reads 248 µm; every other panel 110–135 µm.
What we checked
Every area in your package, and how many problems we found in each. Each problem has its own page before this one.
- Pre-check7 checksNo problems
- Exterior26 checks3 problems
- Wheels and tyres8 checks1 problem
- Interior30 checks1 problem
- Engine bay7 checksNo problems
- OBD and test drive12 checksNo problems
- Underbody23 checksNo problems
- Advanced audit4 checks1 problem
Not in package Listing & document review
Evaluation summary
6 defects · 123/123 checkpoints recorded
This report records what the inspector observed and entered during the inspection, by visual and functional checks without dismantling the vehicle. It is not a guarantee of future condition. Its star rating follows the method of MS 2728:2023 as applied by Autospecter, and is not an official certification.
Terms and conditions
- What this report is
A record of the car's condition as our inspector found it on the day, at the place it was inspected, within the checks of the package you chose. Checks outside the package are marked Not in package.
- A used car is a used car
Wear, past repairs and faults that are hidden or come and go are normal in a used car. We report what could be seen or tested; a clean report does not mean the car has none.
- How we inspect
By looking, listening and operating, without taking anything apart. We do not remove panels, trim or covers unless the report says so. The underbody is checked only in Used Plus, with the car raised on a jack, ramps or a hoist.
- On the day only
A car changes after it is inspected. Anything that appears or worsens later is outside this report.
- Engine, OBD and test drive
These record what could be observed: trouble codes as the scanner read them on the day, and how the car behaved on a short drive, which needs the seller's consent. They do not guarantee the engine, gearbox, electrics or suspension.
- Accident, flood and mileage
We report the signs we can see. Finding none is not proof that the car was never in an accident or a flood, or that the mileage is genuine. We do not check official records unless JomCheck is part of your package.
- What we cannot see
Faults that are internal, intermittent, out of reach or temporarily fixed may not show at the time of inspection.
- Photos, pins and notes
They show where and what we found. A photo may not show the full extent of a defect, and we do not quote repair costs.
- The star rating
Used Plus reports carry a star rating worked out by Autospecter following the method of MS 2728:2023. It describes the car's condition on the day, from the rated checks only; checks marked Not tested or Not on car are left out. It is not a certification, a valuation or a guarantee.
- Your decision
The verdict is our opinion. Whether you buy, negotiate or walk away is your decision alone, and we are not a party to the sale.
- Not a warranty or certificate
This report is not a warranty or insurance, a Puspakom inspection, a roadworthiness certificate, a valuation or an ownership check.
- Our liability
Our liability for an inspection is limited to the fee paid for it, as far as Malaysian law allows. Booking an inspection or using this report means you accept these terms and our Terms of Service on our website.
Show the full checklistEvery check one by one, and how the star rating was worked out.
| # | Checkpoint | OK | Minor | Major | Remarks | |
|---|---|---|---|---|---|---|
| 1. | Vehicle identityChassis/VIN and engine or motor number match the papers, with no sign of tampering. | OK | ||||
| 2. | Cloned vehicleNumbers untouched, cowl panel never removed from the firewall, history consistent. | OK | ||||
| 3. | Stolen vehicleRegistration card or VOC checked (local), or the deregistration certificate (import). | OK | ||||
| 4. | Main frame and structureFail for an unsafe repair, replacement, crack, bend or rusted-through chassis. | OK | ||||
| 5. | Flood incidentFail for rust, mud or electrical faults left by water in the inner parts. | OK | ||||
| 6. | RadiationLevel within the authority's limit. Needs a meter; mostly for imported cars. | N/A | N/A | |||
| 7. | OBD safety codesNo fault on emission, airbags, brakes, sensors or warning lights. | OK |
| # | Checkpoint | OK | Minor | Major | Remarks | |
|---|---|---|---|---|---|---|
| 8. | Body panelsEvery panel, pillar and wheel arch. Minor: scratch, dent or rust · Serious: loose or damaged. Pin each one. | Minor | Right front fender: shallow dent, about 4 cm, above the wheel arch. Paint intact around it.See finding 01 | |||
| 9. | Panel repair or modificationMinor: repaired or replaced to the maker's spec · Serious: not to spec. Either puts the car on the repair scale. | Minor | Right front fender repainted after the dent: 248 µm against 110–135 µm on the rest of the car. A proper repair, but a repair, so the car is scored on the repair scale.See finding 02 | |||
| 10. | Chassis: body shell, frame, floor panMinor: repaired to the maker's or authority's standard · Serious: illegal or improper repair. Either puts the car on the repair scale. | OK | ||||
| 11. | Chassis: cowl/VIN panel, roof reinforcement, pillarsMinor: repaired to the maker's or authority's standard · Serious: illegal or improper repair. Either puts the car on the repair scale. | OK | ||||
| 12. | Doors, bonnet and boot open and closeMinor: one won't open or close properly · Serious: two or more | OK | ||||
| 13. | Hinges, catches, handles, fuel flap, sunroofMinor: loose or misaligned · Serious: missing or deteriorated | OK | ||||
| 14. | Bumpers, grille, bodykit, skirts, tow hook coversMinor: loose or misaligned · Serious: damaged, cracked or split | OK | ||||
| 15. | Glass approval marksSerious: a window without an E or MS mark | OK | ||||
| 16. | Windscreen, windows and quarter glassMinor: discoloured · Serious: cracked or chipped | Minor | Windscreen: stone chip about 3 mm on the passenger side, outside the driver's view.See finding 03 | |||
| 17. | Window tint (VLT)Tint meter on each window. Serious: below the legal light transmission. Note bubbling or peeling. | OK | Front windscreen 72Front right window 52Front left window 52% | |||
| 18. | Side mirrors fittedSerious: a mirror missing | OK | ||||
| 19. | Side mirror condition and functionMinor: loose · Serious: not working, damaged or insecure | OK | ||||
| 20. | HeadlampsLow and high beam. Minor: one side dim · Serious: cracked, not working, illegal change, loose or foggy | OK | ||||
| 21. | Rear lampsMinor: one side dim · Serious: cracked, not working, illegal change, loose or foggy | OK | ||||
| 22. | Stop lampsMinor: one side dim · Serious: cracked, not working, illegal change, loose or foggy | OK | ||||
| 23. | Reversing lampsMinor: one side dim · Serious: cracked, not working, illegal change, loose or foggy | OK | ||||
| 24. | IndicatorsMinor: one side dim · Serious: cracked, not working, illegal change, loose or foggy | OK | ||||
| 25. | Hazard lampsMinor: one side dim · Serious: cracked, not working, loose or foggy | OK | ||||
| 26. | Number plate lampMinor: dim · Serious: cracked, not working, loose or foggy | OK | ||||
| 27. | Fog lampsLens and function. N/A when not fitted. | OK | ||||
| 28. | Wiper operationMinor: works but not at every speed · Serious: missing or not working | OK | ||||
| 29. | Wiper bladesSerious: missing or clearly worn out | OK | ||||
| 30. | Washer pumpMinor: weak spray · Serious: damaged | OK | ||||
| 31. | HornClear and loud. | OK | ||||
| 32. | Emblems and badgesMissing, loose or not original. | OK | ||||
| 33. | Number plates and reflectorsLegal, secure, readable. | OK |
Inspector’s note: Inspected at the seller's porch, dry weather, 10:30 am. Seller present.
| # | Checkpoint | OK | Minor | Major | Remarks | |
|---|---|---|---|---|---|---|
| 34. | Wheel nuts and studsMinor: loose · Serious: missing | OK | ||||
| 35. | Wheel sizeSerious: not to the maker's or authority's spec | OK | ||||
| 36. | RimsKerb rash, bent lips, peeling finish. Minor: scratched and rusted · Serious: bent, cracked or welded | OK | ||||
| 37. | Tyre pattern, model and size per axleSerious: not to the maker's or authority's spec | OK | ||||
| 38. | Tyre approval marksSerious: a tyre without an E, MS or DOT mark | OK | ||||
| 39. | Tyre age (DOT)The 4 digits on each sidewall, e.g. 2423 = week 24 of 2023. Serious: any tyre over 4 years old. | OK | 2424 2424 1825 1825 | |||
| 40. | Tyre tread depthShallowest groove of each tyre. Over 6 mm is OK, 1.6–6 mm Minor, under 1.6 mm Serious. | Minor | Front left 6.7Front right 2.6Rear right 6.4Rear left 6.7mmFront-right tyre at 2.6 mm. Budget for a pair of front tyres within a few months.See finding 04 | |||
| 41. | Spare tyre / tyre kitPresent, inflated, jack and tools. | OK |
| # | Checkpoint | OK | Minor | Major | Remarks | |
|---|---|---|---|---|---|---|
| 42. | Seats and upholsteryEvery seat. Minor: loose, worn, stained or faded · Serious: broken seat structure | Minor | Driver seat outer bolster worn through the stitching. Normal for the mileage.See finding 05 | |||
| 43. | Seat adjustmentMinor: lever or switch worn or unlabelled · Serious: adjustment not working, or a button missing | OK | ||||
| 44. | Dashboard and centre console controlsMinor: a control the driver needs is loose or unlabelled · Serious: one is not working | OK | ||||
| 45. | Dashboard indicator lampsSerious: more than 2 not working | OK | ||||
| 46. | Gauges: speed, revs, fuel, oil pressureSerious: a gauge not working | OK | ||||
| 47. | Warning lights after startAll go out a few seconds after the engine starts. | OK | ||||
| 48. | Seat-belt webbingSerious: torn, worn through or missing | OK | ||||
| 49. | Seat-belt operationPull each belt to its end: water lines or mould are a flood sign. Minor: worn · Serious: loose, cracked or stuck | OK | ||||
| 50. | Parking brake and ABSMinor: loose or unlabelled · Serious: not working | OK | ||||
| 51. | Hazard switch and tell-taleMinor: loose or unclear · Serious: not working | OK | ||||
| 52. | Parking sensors and cameras fittedMinor: fitted but not working · Serious: removed. Not on car if it never had them. | N/A | N/A | |||
| 53. | Parking sensors and cameras workSerious: not working | N/A | N/A | |||
| 54. | Key, immobiliser and alarmSerious: faulty, or locks or sounds by itself | OK | ||||
| 55. | Windows, mirror fold and locksEvery window, mirror fold and lock. | OK | ||||
| 56. | Infotainment controlsScreen, speakers, Bluetooth, camera. Minor: loose or unlabelled · Serious: not working | OK | ||||
| 57. | Air-conditioningCentre vent after 5 minutes on max cold. Minor: weak, or a loose control · Serious: no air, not cold, or a mildew smell | OK | 6 °C (Normal: ≤ 10 °C) | |||
| 58. | Exhaust fumes in the cabinGas leak detector, engine running. Serious: fumes get in. | N/A | N/A | |||
| 59. | Steering columnSerious: badly worn, clicking, vibrating or grinding | OK | ||||
| 60. | Steering wheelMinor: worn or cracked · Serious: tilt won't lock, won't self-centre, or hard to turn | OK | ||||
| 61. | Steering wheel buttonsMinor: a button the driver needs is loose or unlabelled · Serious: one is not working | OK | ||||
| 62. | Clutch engagement (manual or auto)Minor: hard engagement · Serious: leaking | OK | ||||
| 63. | Gear shiftingP, R, N, D without a clunk. Minor: hard shifting · Serious: won't shift | OK | ||||
| 64. | Rear-view mirror | OK | ||||
| 65. | Roof liningStains, sagging, water marks. | OK | ||||
| 66. | Door panelsEvery door, and the third-row trim when fitted. | OK | ||||
| 67. | Floor and carpetsFront and rear floor mat areas. | OK | ||||
| 68. | Glovebox, centre box and storage | OK | ||||
| 69. | Boot and cargo space | OK | ||||
| 70. | OdoursMusty smell, heavy air freshener, cigarette smoke. | OK | ||||
| 71. | Wear against the mileageWheel, gear knob and seat bolster wear for the kilometres shown. | OK |
| # | Checkpoint | OK | Minor | Major | Remarks | |
|---|---|---|---|---|---|---|
| 72. | Engine bay visual checkMissing covers, tampering, fresh paint on bolts. | OK | ||||
| 73. | Leak checkOil, coolant and fluid on the engine and below the car. | OK | ||||
| 74. | Engine start, idle and noiseCold start, steady idle, no knocking. Minor: slight vibration · Serious: strong vibration or abnormal noise | OK | ||||
| 75. | Drive beltsMinor: slightly worn, cracked or loose · Serious: badly worn, cracked or torn | OK | ||||
| 76. | Engine mountingsMinor: loose · Serious: cracked, broken or missing | OK | ||||
| 77. | Exhaust emissionEmission analyser. Serious: outside the authority's limit. | N/A | N/A | |||
| 78. | Gearbox oil leaksMinor: slight leak · Serious: heavy leak | OK |
| # | Checkpoint | OK | Minor | Major | Remarks | |
|---|---|---|---|---|---|---|
| 79. | Fault codesOne code per line with its meaning. Empty means no codes. | OK | ||||
| 80. | Powertrain codesEngine and gearbox performance codes. | OK | ||||
| 81. | Mechanical codesMechanical system performance codes. | OK | ||||
| 82. | Electrical codesBody and network codes. | OK | ||||
| 83. | Chassis codesChassis system performance codes. | OK | ||||
| 84. | Signs of odometer tamperingCluster screws, wear and service records against the mileage. | OK | ||||
| 85. | Short test driveWith the seller's consent. | OK | ||||
| 86. | Gear shift and gearbox behaviourNo slipping, jerks or delay. Minor: a noticeable jolt · Serious: not working | OK | ||||
| 87. | Brakes: pedal, fluid and stoppingFirm pedal, straight stop, pads and discs through the spokes. Minor: slight pedal damage, brakes work well · Serious: bent pedal, fluid leak or poor braking | OK | ||||
| 88. | Steering feelDrives straight, wheel centred. | OK | ||||
| 89. | Suspension noiseKnocks over bumps. | OK | ||||
| 90. | Road vibrationThrough the wheel, seat or pedals. | OK |
| # | Checkpoint | OK | Minor | Major | Remarks | |
|---|---|---|---|---|---|---|
| 91. | Structure: wheel houses, chassis members, frameBends, welds, fresh underseal on one area. Serious: a repair not to the maker's or authority's standard; puts the car on the repair scale. | OK | ||||
| 92. | Securing boltsMinor: 1 bolt loose, missing or rusted · Serious: 2 or more, or badly corroded | OK | ||||
| 93. | Transmission shaft bearingsMinor: rusted · Serious: excessive wear | OK | ||||
| 94. | Universal joints and couplingsMinor: rusted · Serious: excessive wear | OK | ||||
| 95. | Transmission shaftsMinor: scratched or dented · Serious: badly dented or bent | OK | ||||
| 96. | Bearing housingsMinor: scratched or dented · Serious: fractured or insecure | OK | ||||
| 97. | Transmission dust coversMinor: scratched or dented · Serious: missing, torn or badly worn | OK | ||||
| 98. | Gearbox mountingMinor: loose · Serious: cracked | OK | ||||
| 99. | Switches and electrics underneathMinor: worn or unlabelled · Serious: not working | OK | ||||
| 100. | Steering rack and power steeringTorn boots, play in the tie rods. Serious: worn, with free play and a fluid leak | OK | ||||
| 101. | Steering repair or modificationSerious: an improper repair or change, not to the maker's spec | OK | ||||
| 102. | Steering dust coversMinor: scratched · Serious: missing, damaged or torn | OK | ||||
| 103. | Axles, drive shafts and CV bootsMinor: rusted or dented · Serious: fractured, deformed or loose | OK | ||||
| 104. | Wheel bearings, ball joints, king pinsMinor: rusted or bent · Serious: excessive wear, leaking or torn | OK | ||||
| 105. | Spring mountingsSerious: not securely attached | OK | ||||
| 106. | SpringsMinor: rusted, scratched or weak · Serious: damaged or broken | OK | ||||
| 107. | Suspension arms and bushesFront and rear. Minor: rusted, scratched, weak or torn · Serious: missing or damaged | OK | ||||
| 108. | Shock absorbers and mountingsMinor: scratched, rusted, seeping or weak · Serious: damaged | OK | ||||
| 109. | Exhaust fittingSerious: insecure | OK | ||||
| 110. | Exhaust pipeMinor: rusted, dented or slightly corroded · Serious: bad leak or corroded through | OK | ||||
| 111. | Fuel tank and pipesMinor: slightly dented or rusted · Serious: insecure, cracked, badly dented, corroded or leaking | OK | ||||
| 112. | Fuel filler capMinor: loose, dented or rusty · Serious: missing or badly corroded | OK | ||||
| 113. | Silt and rust in the underbodyDried mud in hidden cavities, rust on brackets and fuel lines. | OK |
| # | Checkpoint | OK | Minor | Major | Remarks | |
|---|---|---|---|---|---|---|
| 114. | Paint depthCentre of each steel panel. Far above the rest means repaint or filler. | Minor | Bonnet 111Roof 118Boot 125Right front fender 248Right front door 112Right rear door 119Right rear fender 126Left rear fender 133Left rear door 113Left front door 120Left front fender 127µm · Normal: 80–180 µmRight front fender reads 248 µm; every other panel 110–135 µm.See finding 06 | |||
| 115. | Panel gap and alignmentUneven gaps at the bonnet, fenders and doors can mean crash repair. | OK | ||||
| 116. | Lower cabin scoutingUnder the seats, the seat rails and the dashboard: rust, mud, silt. | OK | ||||
| 117. | Boot floor and spare-wheel wellStanding water, water marks or rust. | OK |
Inspector’s note: All other steel panels read 110–135 µm, consistent with factory paint.
| Listing & document review | 4 checks not covered by this package |
How this rating was worked out
Every pre-check passed and no major defect was recorded.
Body or chassis repair found: body, wheels and underbody are scored on the repair scale.
Pre-check
| PC-01 | Vehicle identity | Pass |
| PC-02 | Cloned vehicle | Pass |
| PC-03 | Stolen vehicle | Pass |
| PC-04 | Main frame and structure | Pass |
| PC-05 | Flood incident | Pass |
| PC-06 | Radiation | Not tested |
| PC-07 | OBD safety codes | Pass |
Score by section
| Section | OK | Minor | Major | Checks | Weight | Marks |
|---|---|---|---|---|---|---|
| Body and wheels | 25 | 4 | 0 | 29 | 30 % | 0.517 |
| Underbody and mechanical | 28 | 0 | 0 | 28 | 30 % | 3.000 |
| Interior | 16 | 1 | 0 | 17 | 20 % | 19.412 |
| OBD | 4 | — | 0 | 4 | 20 % | 20.000 |
| Total | 42.93 % | |||||
Star bands
- 86.01 – 100 %
- 68.01 – 86.00 %
- 50.01 – 68.00 %
- 30.01 – 50.00 %This car
- 0.01 – 30.00 %
- 0 %Failed the pre-check
Window tint (VLT)
- Front windscreen
- 72 % ≥ 70 %
- Front right window
- 52 % ≥ 50 %
- Front left window
- 52 % ≥ 50 %
Left out of the total PC-06 Radiation (Not tested) · IN-11 Parking sensors and cameras fitted (Not on car) · IN-12 Parking sensors and cameras work (Not on car) · IN-17 Exhaust fumes in the cabin (Not tested) · EB-06 Exhaust emission (Not tested)
Each rated check is graded OK, Minor or Major. A section's marks are its checks' grades (worth 100 %, 50 % and 10 %) shared over its checks, times the section's weight. When a body or chassis repair is found, body, wheels and underbody use 10 %, −50 % and −100 % instead. An OBD group scores in full with no code and nothing with one. The sections add up to the total, and the total gives the stars.
Rated by Autospecter following MS 2728:2023 (Used motor vehicle – Classification – Requirements for evaluation). This is not a certification.
